Description

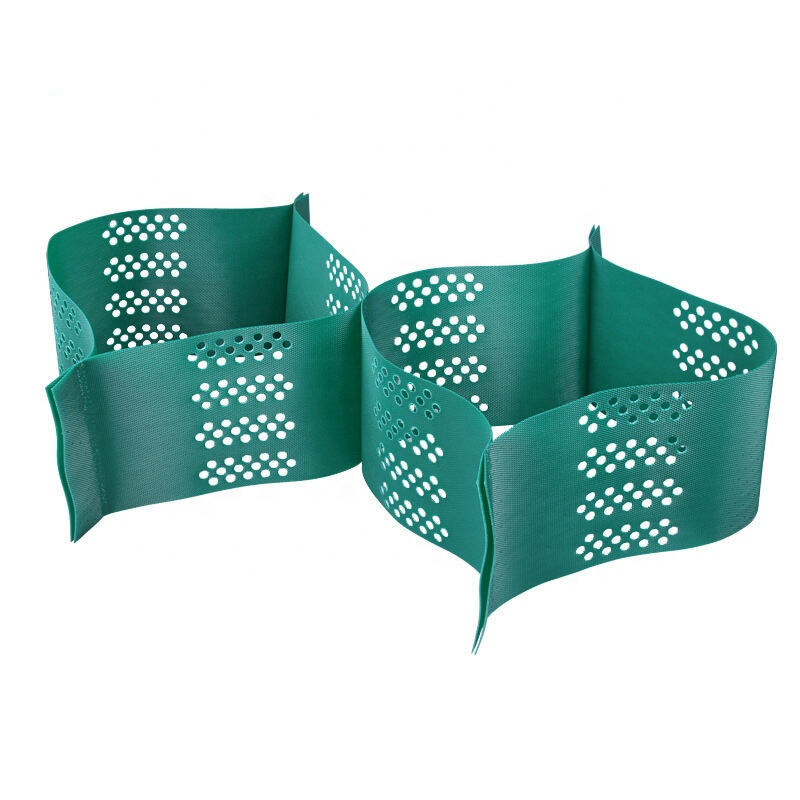

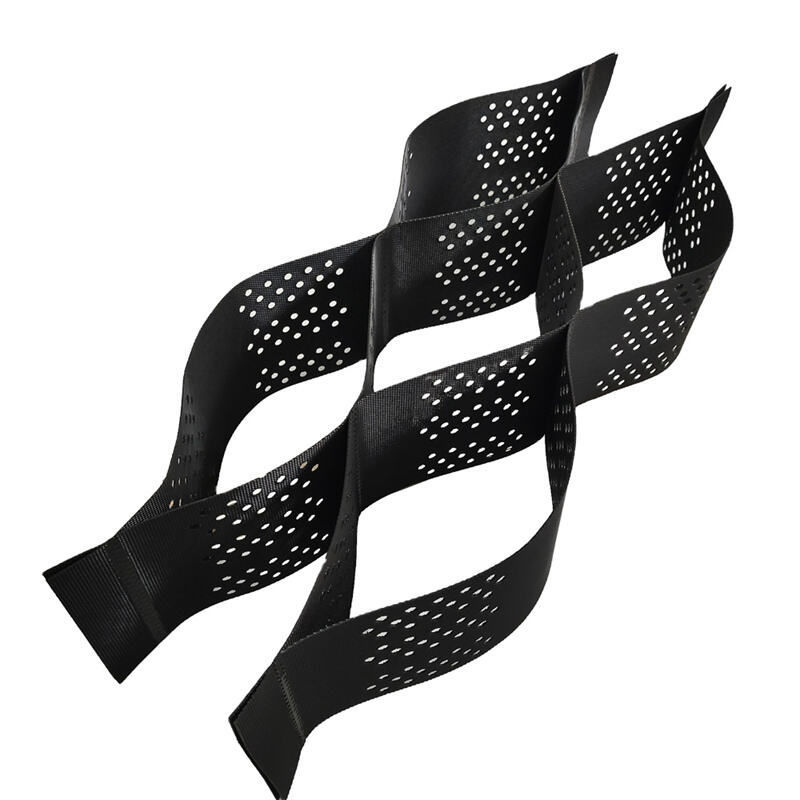

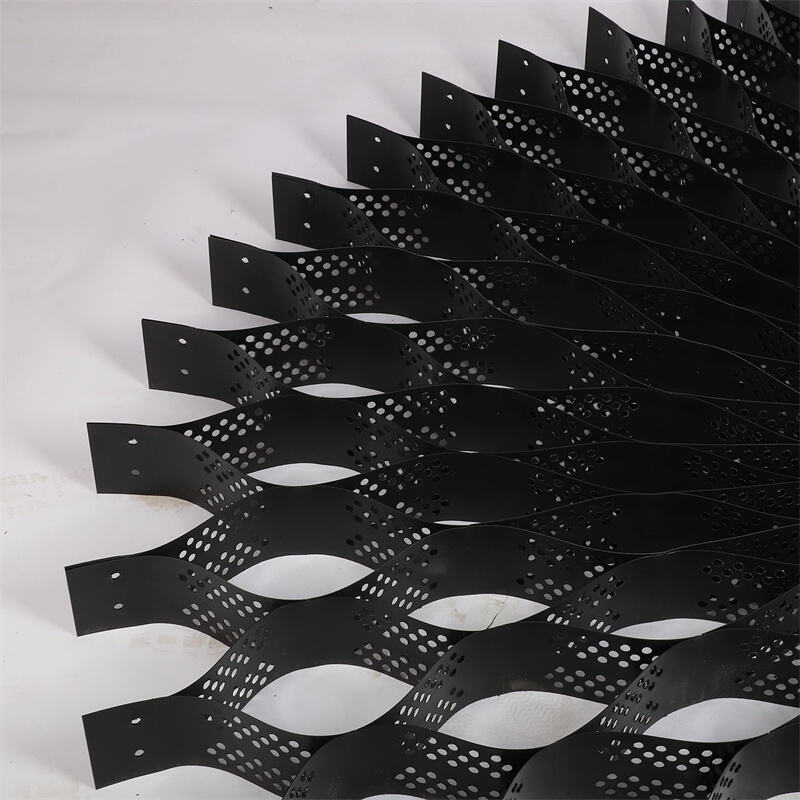

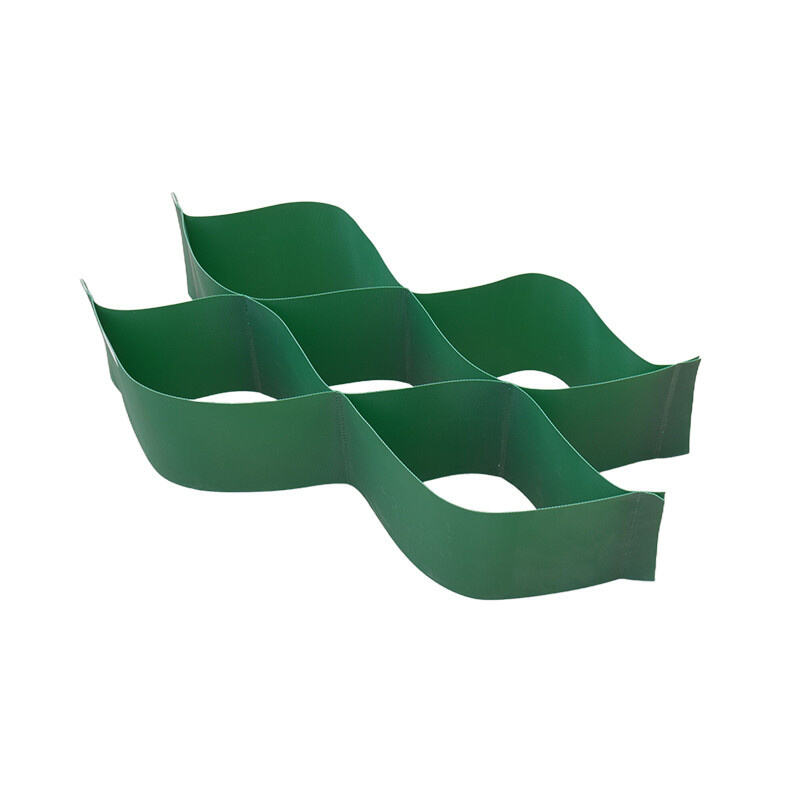

Geocell is a three-dimensional network structure material made of high-strength polyethylene plastic sheets bonded by ultrasonic welding. It uses local materials such as sand, gravel, and soil as fillers to form a composite material with a general structure, achieving high load-bearing capacity. It can form a stable subgrade and also allow grass planting on it for greening and stabilizing slopes.It has flexible expansion and contraction, can be transported and stacked, and can be tensioned into a mesh during the construction process. It can be filled with loose materials such as soil, gravel, and concrete, and has a wide range of applications.The material is lightweight, chemically stable, and forms structures with high lateral confinement and stiffness, which can enhance the bearing capacity of the subgrade and distribute loads. It is suitable for different soil conditions, including desert soils.Flexible in extension and contraction, with small transportation volume, lightweight materials for convenient transportation, and can be tensioned into a single network during construction. It is easy to connect, simple to construct, and allows for fast construction speed.
Specifications
| Place of Origin | Shandong, China |
| Brand Name | JRX |
| Model Number | HDPE Geocell |
| Certification | ISO9001/ISO14001 |
| Seam peel strength (N/cm) | 100/120/142 |
| Tensile strength at yield (N/cm) | ＞200 |
| Welding distance (mm) | 300-1200 |
| Cell depth (mm) | 50-300 |
| Expanded cell size width*length (mm) | 212*193~849*772 |
| Expanded section width min./max. (m) | 1/6 |
| Expanded section length min./max (m) | 0.9/26.3 |
Applications

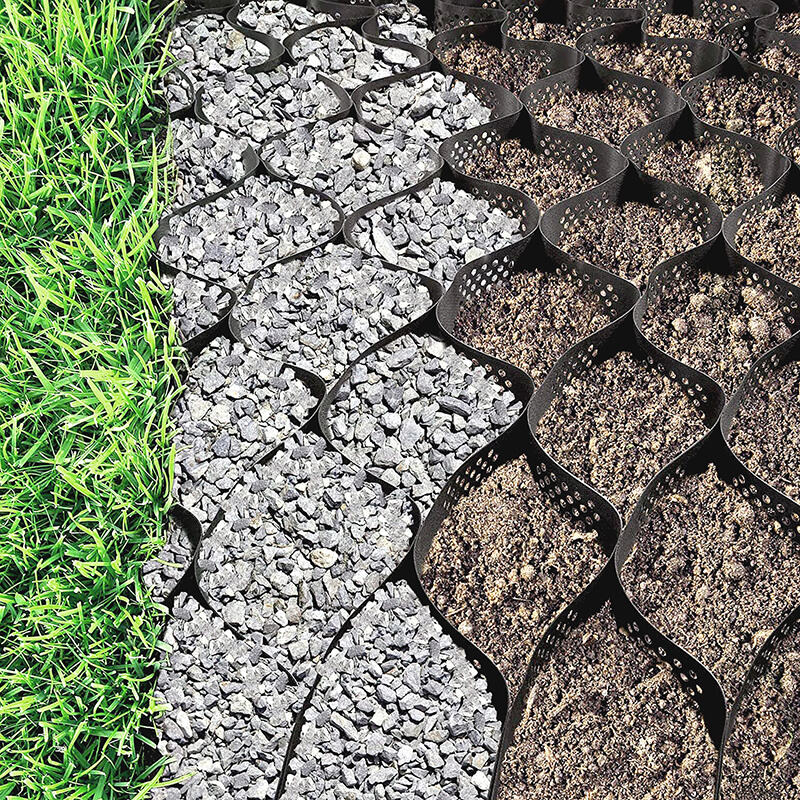

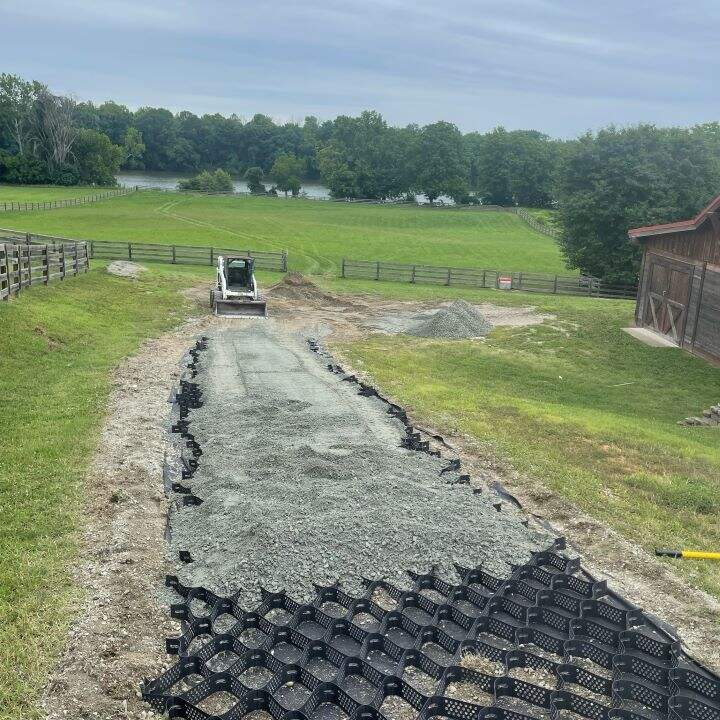

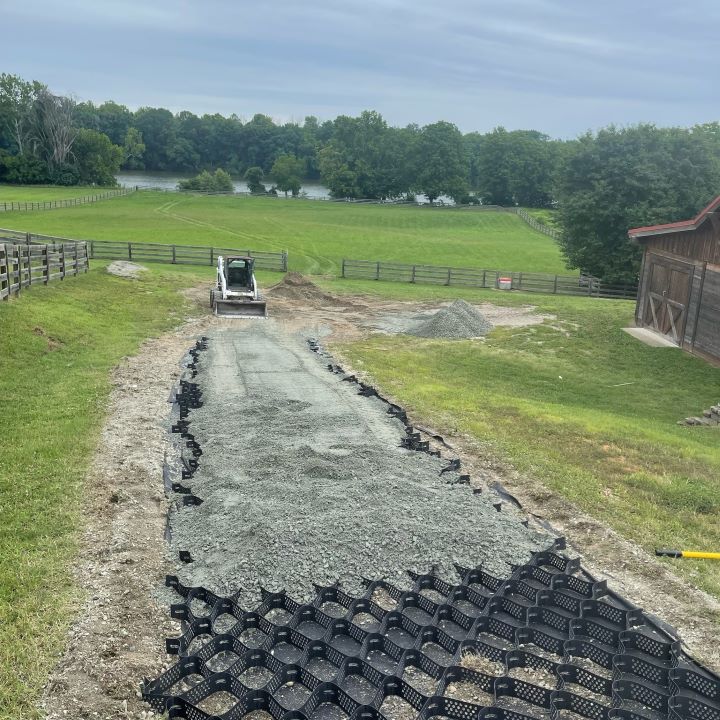

HDPE Geocell mainly used in foundation reinforcement, soft foundation treatment, steep slope protection, landslide prevention and hybrid retaining wall subject to load and weight; especially suitable for weathered mountain forests, deserts and swamps.
1.Load support: Solve unacceptable road, parking and yard surface problems.
2.Slope protection: Create a stable environment forlong-term sustainability of embankment material.
3.Channel protection: Ensure stability and protection of channels exposed to all types of erosive conditions.
4.Vegetated retaining walls: including steepened slopes, retaining walls, gravity walls and so on.
5.Shorelines: Provide unique solutions to prevent erosion problems caused by water contact, surface flow and wave action.
Video
Advantages
Excellent lateral constraint and load distribution capacity, strong corrosion & anti-aging performance. Lightweight, easy to transport and install, flexible and customizable, effectively improving foundation stability and preventing soil erosion.
