Erosion Control Mat Embankment 3D Geomat Geonet for Highway and Railway Slopes protection

  • Description
  • Specifications
  • Applications
  • Video
  • Advantages
  • FAQ
  • Recommended Products

Description

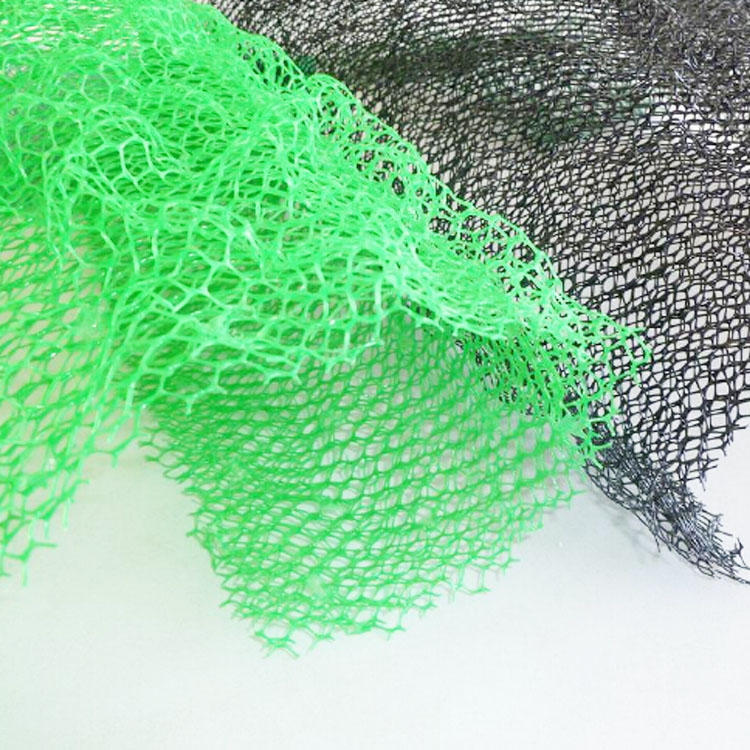

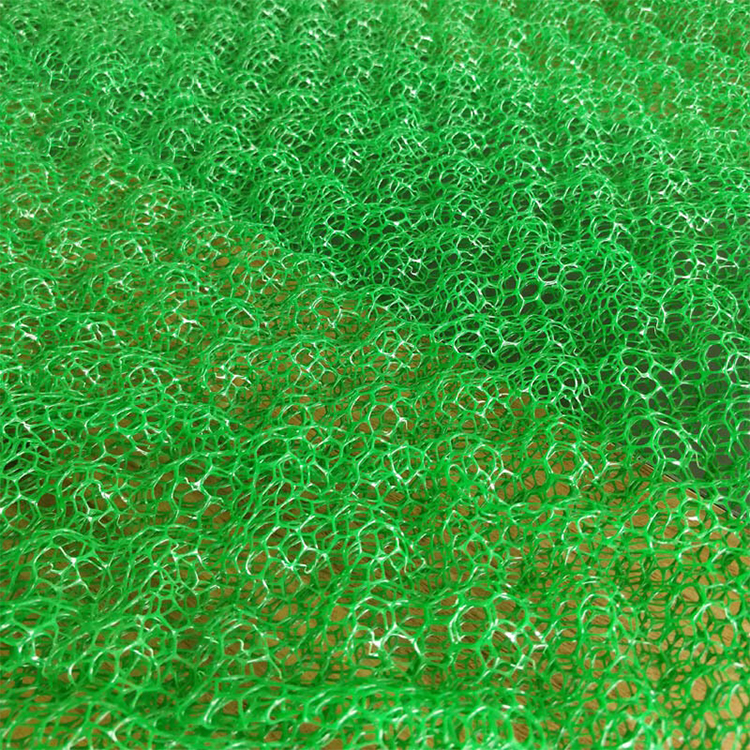

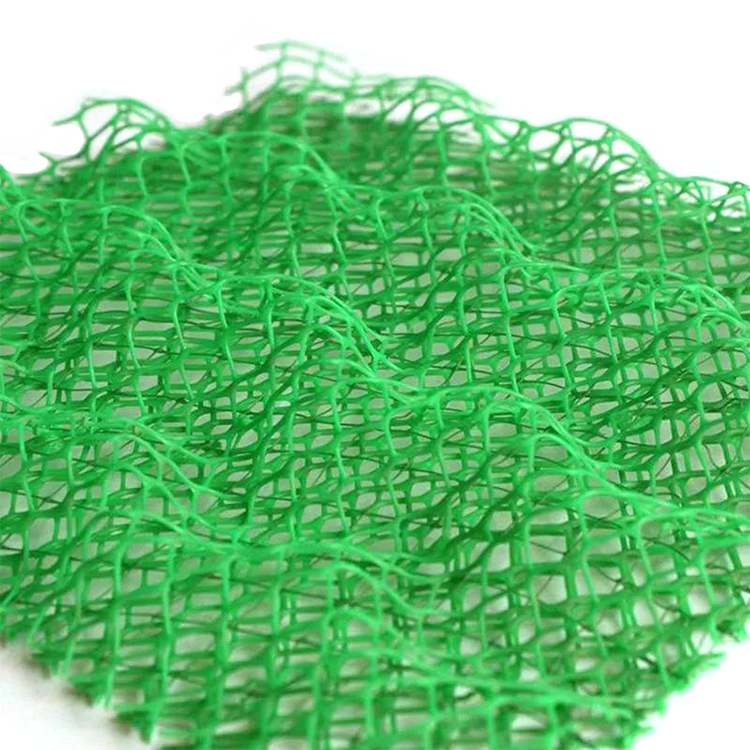

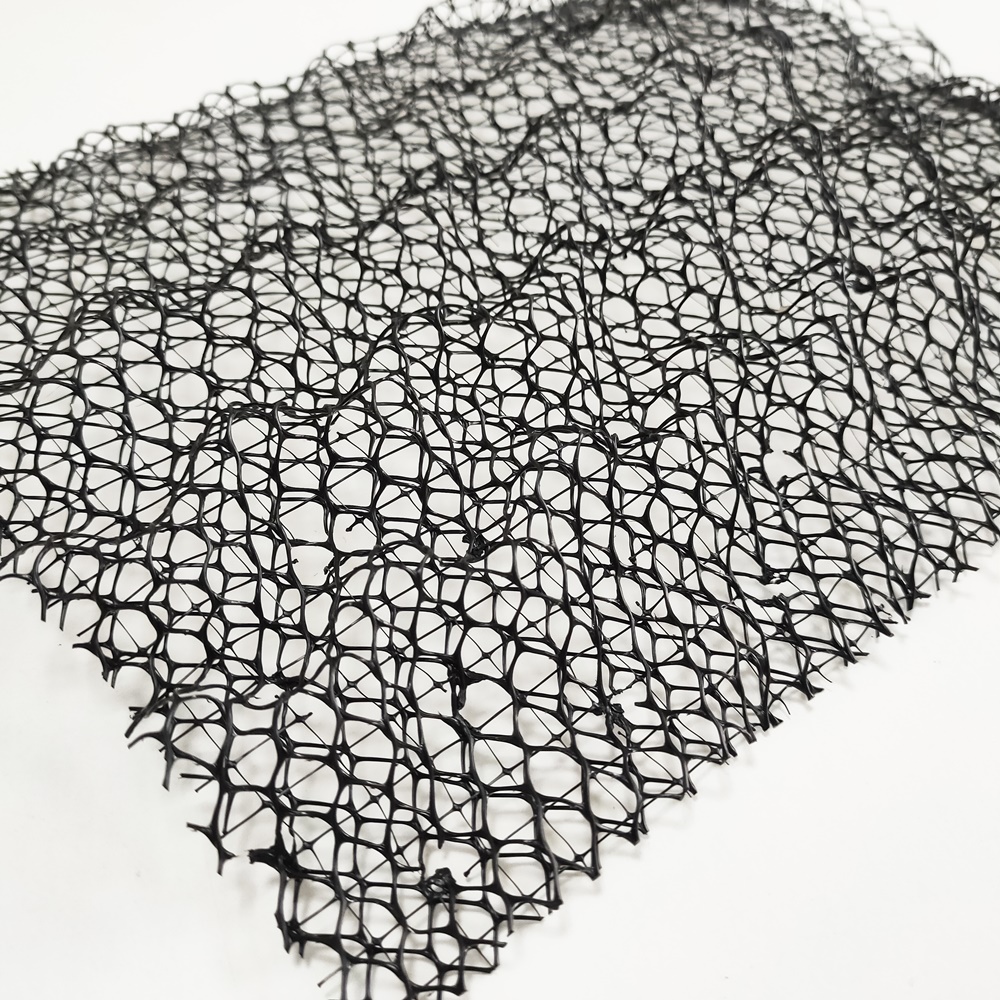

Geomat is an advanced, three-dimensional network structure composed of durable polymer synthetic materials, engineered to create a resilient green composite protective layer. This innovative solution is lightweight and easy to install, making it an ideal choice for a range of construction and landscaping applications.
Key Features:
* Robust Protective Layer: Geomat functions as a composite protective layer that can withstand high water levels and manage significant water flow rates, ensuring stability in challenging environments.

* High Soil Filling Capacity: With approximately 90% of its structure designed for soil, gravel, and fine stone filling, Geomat provides an optimal medium for vegetation. This capacity allows for effective moisture retention and soil stability.

* Encourages Vegetation Growth: Plants thrive within the Geomat structure, as it supports root growth that can extend 30 to 40 meters underground. This deep rooting system not only anchors the plants securely but also enhances soil cohesion.

Specifications

Erosion Protection Mat technical parameters
Polymer index
Polymer type
Polypropylene
Mass per unit area of polymer
g/m2
450±45
(customizable)
Reinforcement performance
Type
Galvan-plated hexagonal twisted double wire mesh
Mesh type number
M8
Mesh size
mm
80(-0 / + 10)
Mesh wire diameter
mm
2.7
Metal plating weight in grams
g/m2
>= 233
Aluminum content
%
>= 4.2
Mechanical requirements
Nominal tensile strength of reinforced mesh surface
KN/M
>= 42
Polymer peel strength
KN/M
>= 0.3
Physical properties
Mass per unit area
g/m2
1850 ± 200
2KPa nominal thickness
mm
12
Earth mat color
Black, green or brown

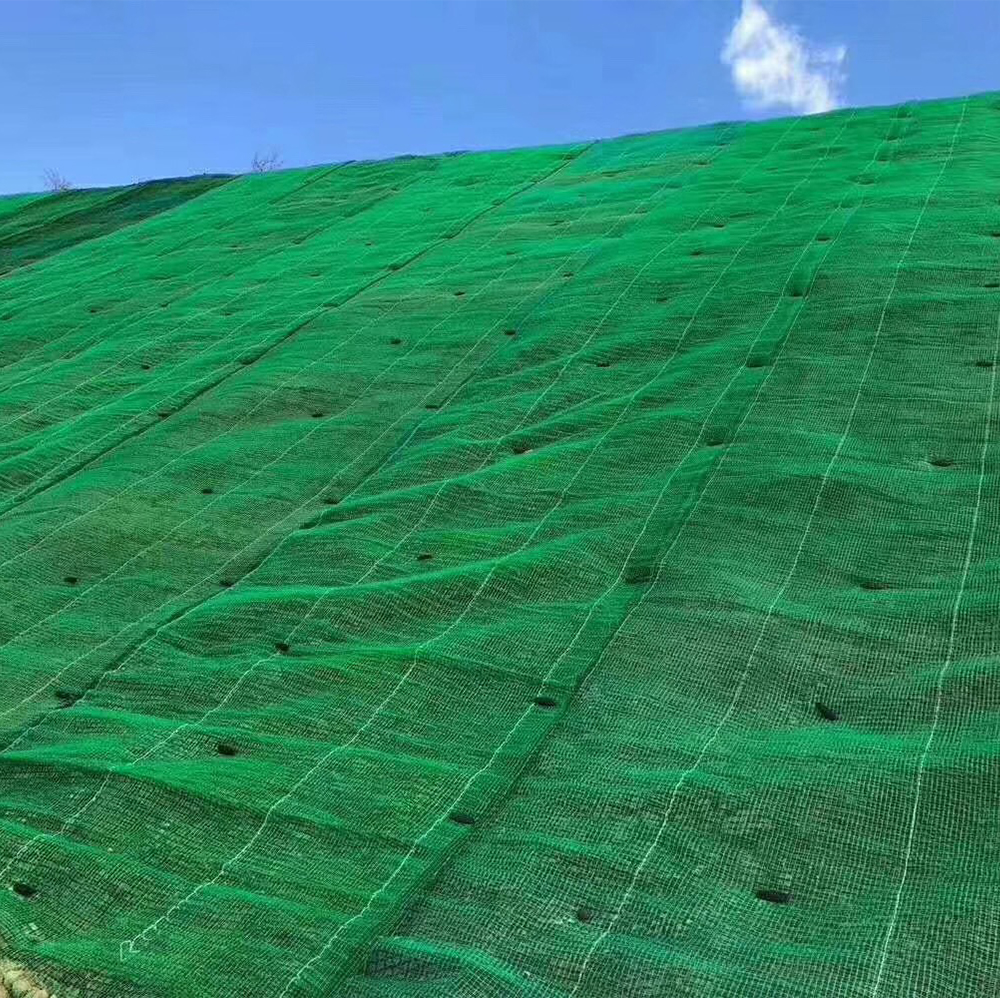

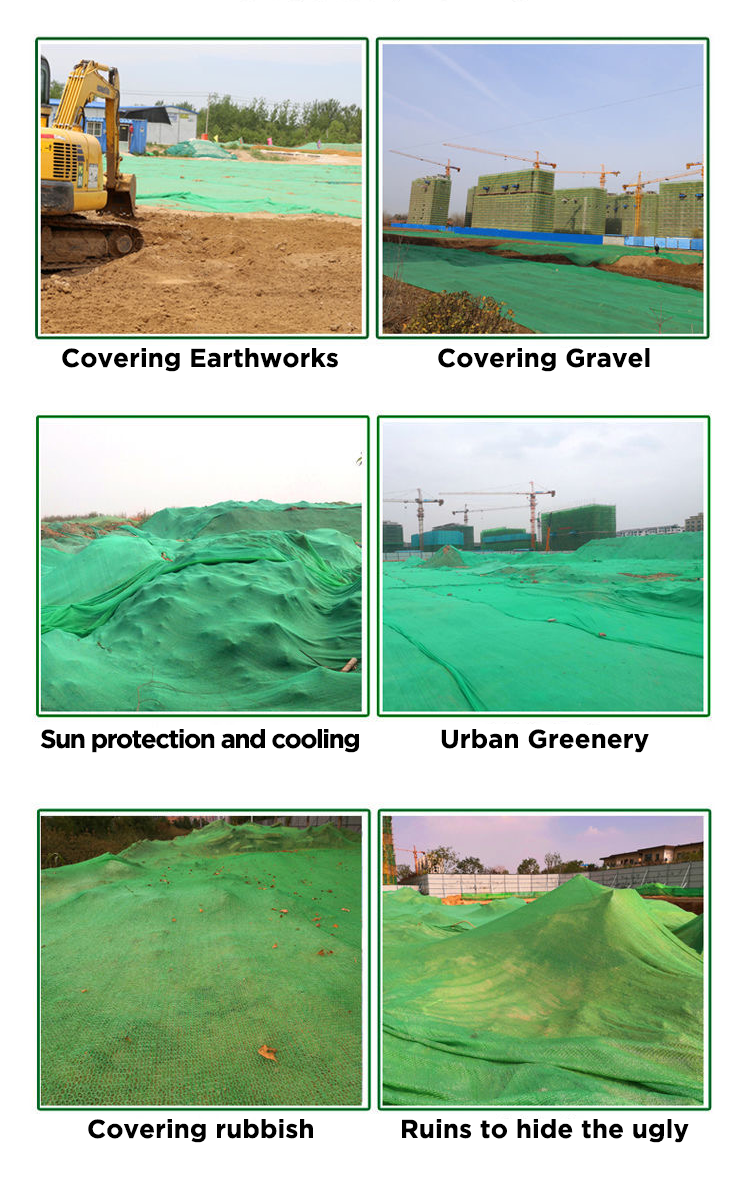

Applications

  1. It can protect earth from being eroded by winds and rains before grass growing up;
    2. It can keep grass seeds distributed in slope firmly, and avoid to be washed;
    3. Black mat can absorb thermal energy abundantly, increase ground wet, promote seed sprout, and prolong growth term of plants;
    4. The surface is tough, so wind and water stream can form plenty of eddy in the surface of the mat, which can produce energy
    dissipation function;
    5. Plants can form composite protection layer and endure wash with high water and fast speed;
    6. It can replace long-lasting slope protection materials such as concrete, pitch, block, etc., and can be used in slope
    protection such as road, railway, river, dam, mountain slope, etc.;
    7. It can reduce construction cost greatly;
    8. It can prevent move of sand dunes after laying sand surface, which can improve roughness of the road surface, increase sediment
    of the road surface, change physical performance, and improve partial ecological environment;
    9. It is applied in slope protection of road, railway, mine and municipal construction, and it can prevent water and soil loss;
    10. First choice of gardening, greening.


Video

Advantages

1.Alternative concrete, asphalt, slab stone and other slope protection materials, mainly used for highway, railway, river, embankment, slope and other slope protection.

2.The soil can be protected from wind and rain before it grows up

3.The compound protection layer formed after the plant grows can withstand high water level, and hurried water flow.

4.The cost of the project can be greatly reduced, and the cost is only 1/7 of the concrete protection slope and the slope of dry masonry, and 1/8 of the sluiry masonry stone.

5.Due to high polymer materials and UV anti-stabilizer, it has high chemical stability and no pollution to the environment.

6.The construction is simple, after the surface level is flat, can be constructed.

FAQ

Q : Are you a factory or trading company?

A : We are a professional manufacturer that specialized in geomembrane, geotextile, composite geomembrane etc with ISO9001 certificate more than 15 years.

Q : Where is your factory located? How can I visit there?

A : Our facoty is located is No.10 Yuanshan Road High-tech Development Zone, Laiwu District, Jinan City China. You can take the plan to Jinan Yaoqiang International Airport, then we can pick you up.

Q : Could you send the sample before order confirmation?

A : Yes, we'd love to send a free sample to you for an evaluation if you need.

Q : How about the delivery time?

A : General within 3-7 days after received the deposit.

Q : Can you produce the product according to customers' requirements?

A : Sure, we are professional manufacturer, OEM and ODM are both welcome.
